TMK KLINCK LTD SPECIALISE IN
GATE VALVE DRILLING AND HOT TAP SERVICES
INCLUDING MANUFACTURING & SALES OF
OUR GATE VALVE DRILLING & HOT TAP EQUIPMENT
<
>
TMK Klinck Ltd is a leading High Pressure Gate Valve Drilling and Hot Tap services company, globally winning profitable contracts by offering a safe, high quality, cost effective service, delivered by excellent equipment and fully trained personnel.
OIL & GAS INDUSTRY SPECIALIST
We specialize in the Oil & Gas industry.
We do not seek work outside the sector unless it is aligned with our goals.
SERVICE QUALITY
Our Equipment and Service Technicians will be of the highest standard. Every job will be given the same high level of attention, both during the planning and execution phases of the operation.
OUR CUSTOMERS
In order to achieve excellence in our field, we will work closely with our customers in developing a safe and cost effective job design.
HSE
All projects undertaken will adopt the highest standards of safety and environmental protection.
ABOUT US
Welcome to TMK Klinck Ltd. We are a service company supplying Gate Valve Drilling and Hot Tap sales and services. Our Gate Valve Drilling and Hot Tap units are of an innovative design and incorporate the latest technology and the very best in safety features.
Both the Gate Valve Drilling and Hot Tap units are rated for 15000psi working pressure and are sour service compliant. The units are certified to the highest standards and are Zone1, BV, DNV, ATEX&CE marked, enabling them to operate anywhere in the world.

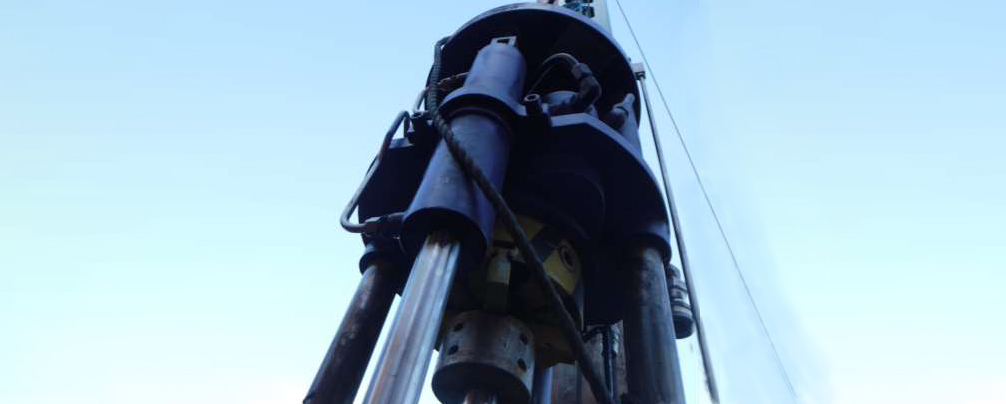

The Gate Valve Drilling unit is used for drilling out broken or inoperable gate valves in X-Trees up to 7 1/16 inch ID and is designed to perform these tasks with pressures up to 15000 psi below the gate. The unit can also be used to mill out junk, scale or wax deposits in the well head and hanger.
The Gate Valve Drilling unit has a purpose built dynamic seal system with an integrated annular BOP that forms a secondary barrier to the primary dynamic seals.
New developments on the TMK Klinck Ltd Gate Valve Drilling unit are our hollow drill rod and milling head/disconnect system. The milling head can be disconnected should it become stuck and can later be fished with standard slick-line tools.
The Smaller Hot Tap unit is sour service compliant, 15,000psi working pressure and uses the same design principles as the larger Gate Valve Drilling unit.
Our Gate Valve Drilling and Hot tap units are operated from a remote console, reducing risk to the operator and ensuring a smooth and safe operation. Both units are simple to operate and quick to rig up with a minimum crew size of two experienced operators for a 12 hour operations.
We also offer consultancy services for Well Intervention work, this includes but is not limited to: Snubbing, HWO/Work-over, Coil tubing, Slick-line, Through Tubing Fishing and Completions.
All projects undertaken by TMK Klinck Ltd are done so adopting a commitment to doing the job in a safe and cost effective manner.
THE TEAM
TMK Klinck Ltd has the best and brightest in every field. This strong team is the backbone of everything we do.
Tim Klinck and Mark Klinck are the founders of TMK Klinck Ltd.
Tim and Mark have a mechanical engineering background and are the designers of the TMK Klinck Ltd Gate Valve Drilling and Hot Tap equipment.
Tim and Mark have more than 35 years (70 years combined experience) in the Oil and Gas Industry. Working in the Well Services sector, employers and clients have been both service companies and majors, in jobs that have included: Through Tubing Fishing, Completion Engineering, Snubbing/HWO, Coil Tubing, Gate Valve Drilling, Hot Tap and Slick-line services.

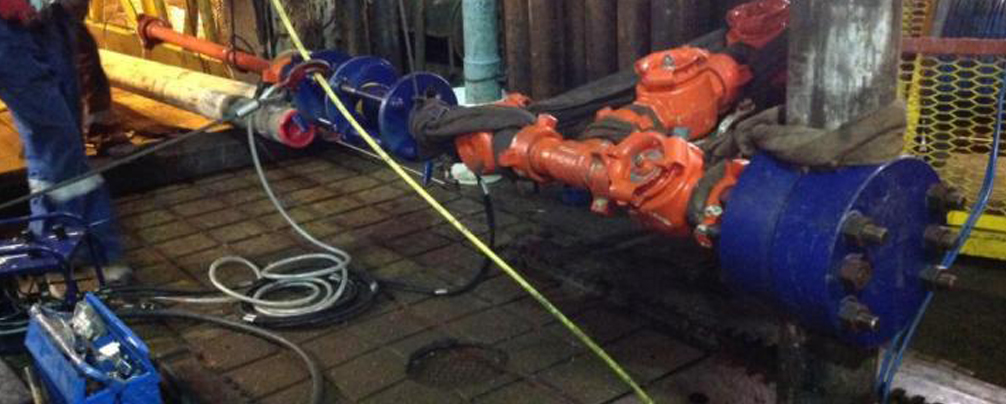

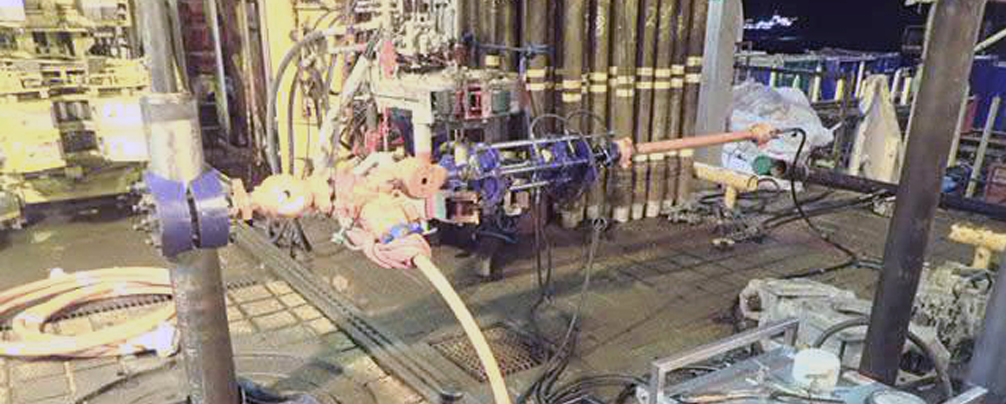

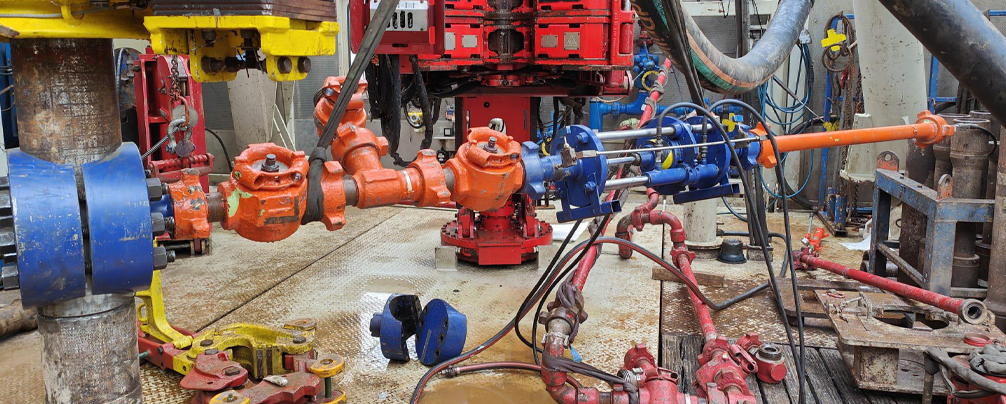

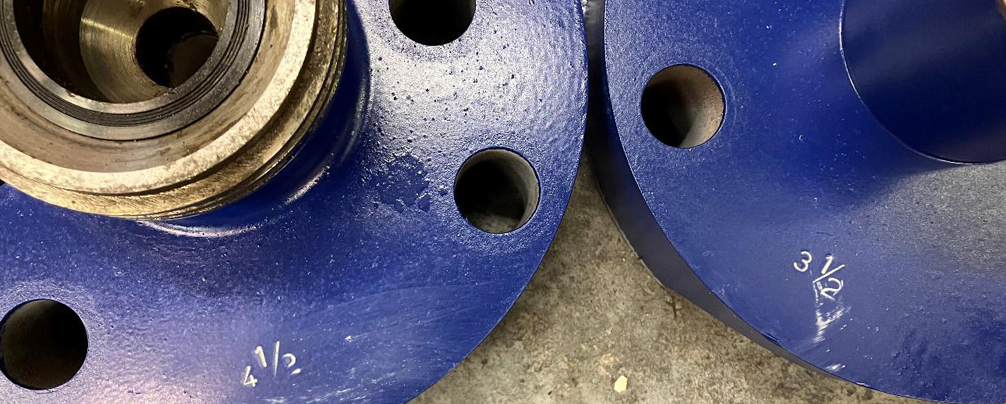

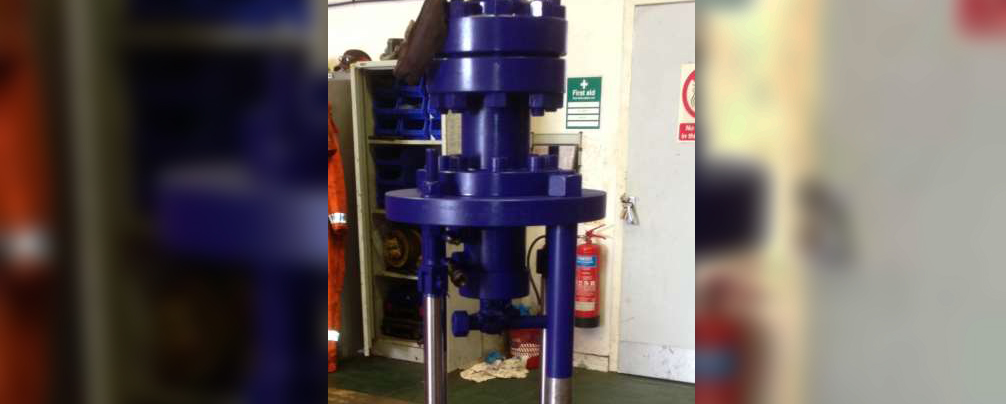

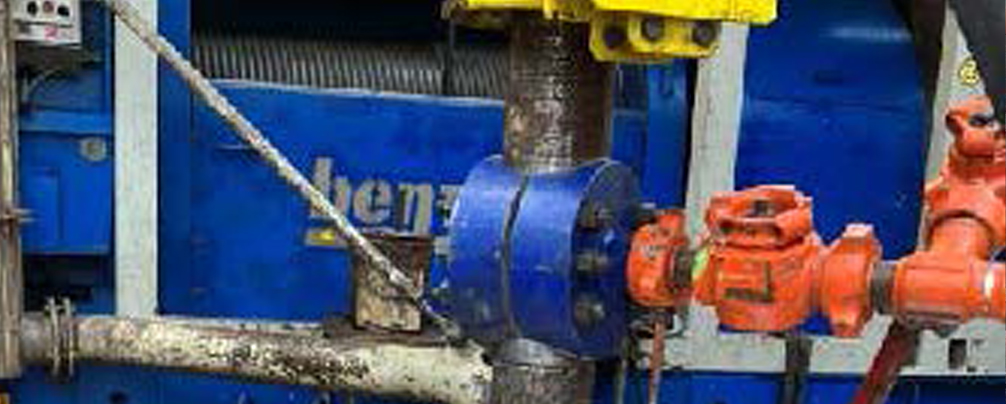

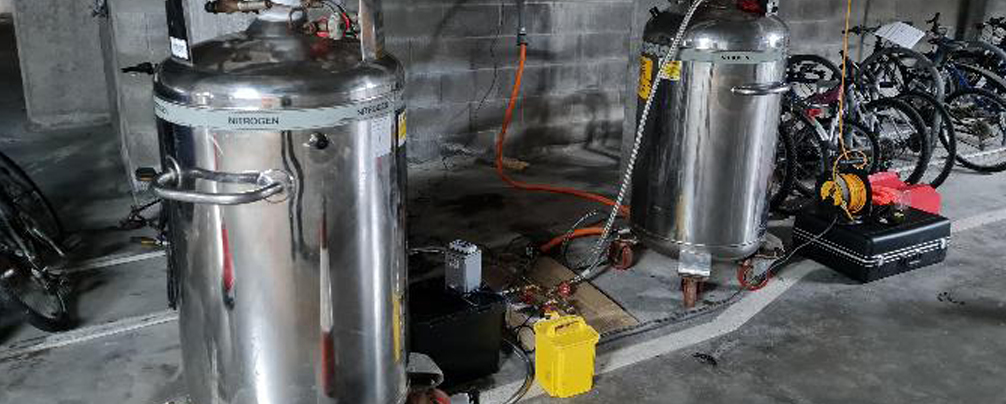

CASE HISTORY
FOLLOW WHAT TMK HAVE BEEN UP TO
Date: 8/9/10
Customer: Alert / Conoco
Location: Sumatra, Indonesia
Well: Leko 7
Mill Type: 2 inch Bull nose junk mill
Gate Size: 2 1/16 inch
Pressure: 450psi on the annulus while well flowed to the flare pit
Time to Mill: 20 minutes
Description: Mill through casing valves so well kill operations could be performed on blow out.
Date: 22/9/10
Customer: Alert / Conoco
Location: Sumatra, Indonesia
Well: South Rawa 1
Mill Type: 2 7/16 inch Flat nose junk mill
Gate Size: 2 9/16 inch
Pressure: 1200psi
Time to Mill: 45minutes
Description: Mill broken lower master valve so plugs could be set and tree valve replaced repaired.
Date: 15/1/11
Customer: Energean
Location: Kavala, Greece
Well: PB-16A
Mill Type: 3 inch Bull nose
Gate Size: 3 1/16 inch
Pressure: 1500psi & 63% H2s
Time to Mill: 2 hr 15minutes
Description: Mill broken lower master valve (dual tree long string) so plugs could be set and tree valve replaced repaired.
Date: 15/6/11
Customer: Shell BSP
Location: Brunei
Well: N/A
Mill Type: Internal tubing cutter 3 inch
Time to Mill: 20 minutes to cut tubing
Description: Perform trial tubing cut on 3.5 inch tubing. To prove feasibility of cut so tree and well head can be replaced in one lift. Tree & Well heads in poor state and none repairable. Cameron well heads delivered in 2013 Q1 for well S462 & S773. GVD Unit scheduled for return March 2013.
Date: 22/4/13
Customer: Alert / Shell BSP
Location: Brunei
Well: S-462
Mill Type: Internal tubing cutter 3 inch
Time to Mill: 10 minutes to cut tubing
Description: Perform tubing cuts on two wells with badly corroded Xtree and tbg head spools. Completion 3.5 inch tubing. Tree & tbg head spool removed after freeze applied. P&A both wells.
Date: 22/4/13
Customer: Alert / Shell BSP
Location: Brunei
Well: S-462
Mill Type: Internal tubing cutter 3 inch
Time to Mill: 10 minutes to cut tubing
Description: Perform tubing cuts on two wells with badly corroded Xtree and tbg head spools. Completion 3.5 inch tubing. Tree & tbg head spool removed after freeze applied. P&A both wells.
Date: 22/4/13
Customer: Alert / Shell BSP
Location: Brunei
Well: S-462
Mill Type: Internal tubing cutter 3 inch
Time to Mill: 10 minutes to cut tubing
Description: Perform tubing cuts on two wells with badly corroded Xtree and tbg head spools. Completion 3.5 inch tubing. Tree & tbg head spool removed after freeze applied. P&A both wells.
Date: 25/5/13
Customer: Alert / Shell BSP
Location: Brunei
Well: S-773
Mill Type: Internal tubing cutter 3 inch
Time to Mill: 20 minutes to cut tubing
Description: Perform tubing cut on 3.5 inch tubing for Freeze and P&A.
Date: 25/5/13
Customer: Alert / Shell BSP
Location: Brunei
Well: S-773
Mill Type: Internal tubing cutter 3 inch
Time to Mill: 20 minutes to cut tubing
Description: Perform tubing cut on 3.5 inch tubing for Freeze and P&A.
Date: 25/5/13
Customer: Alert / Shell BSP
Location: Brunei
Well: S-773
Mill Type: Internal tubing cutter 3 inch
Time to Mill: 20 minutes to cut tubing
Description: Perform tubing cut on 3.5 inch tubing for Freeze and P&A.
Date: 25/5/13
Customer: Alert / Shell BSP
Location: Brunei
Well: S-773
Mill Type: Internal tubing cutter 3 inch
Time to Mill: 20 minutes to cut tubing
Description: Perform tubing cut on 3.5 inch tubing for Freeze and P&A.
Date: 13/12/13
Customer: Shell UK
Location: Brent Bravo North Sea
Well: BB-02
Drill Type: 22mm Drill Rod
Time to Complete: 30 minutes per Tap. Two Taps performed
Description: Perform Hot Tap on 7 inch tubing between permanent Bridge plugs set in lower completion. Bleed off 1300psi. Perform Hot Tap on 5.5 inch tubing below junk plug stuck in SPM.
Date: 13/12/13
Customer: Shell UK
Location: Brent Bravo North Sea
Well: BB-02
Drill Type: 22mm Drill Rod
Time to Complete: 30 minutes per Tap. Two Taps performed
Description: Perform Hot Tap on 7 inch tubing between permanent Bridge plugs set in lower completion. Bleed off 1300psi. Perform Hot Tap on 5.5 inch tubing below junk plug stuck in SPM.
Date: 13/12/13
Customer: Shell UK
Location: Brent Bravo North Sea
Well: BB-02
Drill Type: 22mm Drill Rod
Time to Complete: 30 minutes per Tap. Two Taps performed
Description: Perform Hot Tap on 7 inch tubing between permanent Bridge plugs set in lower completion. Bleed off 1300psi. Perform Hot Tap on 5.5 inch tubing below junk plug stuck in SPM.
Date: 16/6/14
Customer: Shell Ireland
Location: Ocean Guardian West Coast Ireland
Well: Corrib P6
Drill Type: 22mm Drill Rod
Time to Complete: 40 minutes per Tap. Two Taps performed
Description: Perform Hot Tap on 5 inch tubing between Interwell Bridge plugs set in lower completion. Bleed off 2800psi. Perform Hot Tap on 5 inch tubing between lower Interwell Bridge plug and Halliburton HX4 junk plug stuck in crossover. Bleed off 120psi.
Date: 15/6/14
Customer: Shell Ireland
Location: Ocean Guardian West Coast Ireland
Well: Corrib P6
Drill Type: 22mm Drill Rod
Time to Complete: 40 minutes per Tap. Two Taps performed
Description: Perform Hot Tap on 5 inch tubing between Interwell Bridge plugs set in lower completion. Bleed off 2800psi. Perform Hot Tap on 5 inch tubing between lower Interwell Bridge plug and Halliburton HX4 junk plug stuck in crossover. Bleed off 120psi.
Date: 12/10/14
Customer: Alert Disaster Control
Location: Papua New Guinea
Description: Excavate cellar and perform multiple casing cuts so Well Head and BOPs could be installed on shallow gas blow out.
Date: 8/10/15
Customer: Talisman Sinopec Energy UK Limited
Location: Montrose Platform North Sea
Well: A21
Mill Type: 4 inch Stepped Mill
Gate Size: 41/16 inch 410SS
Pressure: 500psi
Time to mill: Swab 9hr, Lower Master 5.25hr
Description: Mill Swab and Lower Master valves so tree could be replaced after plugs set.
Date: 8/10/15
Customer: Talisman Sinopec Energy UK Limited
Location: Montrose Platform North Sea
Well: A21
Mill Type: 4 inch Stepped Mill
Gate Size: 41/16 inch 410SS
Pressure: 500psi
Time to mill: Swab 9hr, Lower Master 5.25hr
Description: Mill Swab and Lower Master valves so tree could be replaced after plugs set.
Date: 14/11/15
Customer: Talisman Sinopec Energy UK Limited
Location: Montrose Platform North Sea
Well: A03
Mill Type: 4 inch Stepped Mill
Gate Size: 41/16 inch 410SS
Pressure: 500psi
Time to mill: 2.5hr
Description: Mill Swab and Lower Master valves so tree could be replaced after plugs set.
Date: 10/06/16
Customer: Taqa Bratani Limited
Location: Cormorant Alpha
Well: N/A
Mill Type: 22mm Drill Rod c/w 10mm Drill
Ball Valve: VB 12 inch Ball Valve
Pressure: Unknown
Description: Design and build a Hot Tap unit and Offset Clamp suitable for drilling into 12” Ball Valve cavity so sealant can be injected.
Date: 20/07/17
Customer: Apache UK
Location: Forties Alpha
Well: Well FA 5-6
Mill Type: 6.25 inch Stepped Mill
Gate Size: 7 1/16 inch INCOLOY
Pressure: 500psi
Time to mill: 38hr (NOTE: Incoloy gates)
Description: Mill Lower Master valve on injector.
Date: 26/10/17
Customer: Southern North Sea
Location: Southern North Sea
Well: Well 27 D
Mill Type: 5 inch Stepped Mill
Gate Size: 5 inch 4140
Pressure: 1000psi
Time to mill: 9hr
Description: Mill Lower Master valve.
Date: 20/1/18
Customer: EnQuest
Location: Thistle Platform
Well: Well A47 Slot 47
Mill Type: 3 inch Stepped Mill
Gate Size: 3 inch 4140
Pressure: 2200psi
Time to mill: 1hr
Description: Mill Lower Master valve.
Date: 17/3/18
Customer: EnQuest
Location: Heather Platform
Well: Well H-63
Mill Type: 5 inch Stepped Mill
Gate Size: 5 1/8 inch 4140
Pressure: 1200psi
Time to mill: 7hr
Description: Mill partially open Lower Master valve.
<
>
CASE HISTORY DOWNLOAD - [PDF]
